Dimensions: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size: 1/2″NB TO 4″NB IN
Pressure Class: 2000 LBS,3000 LBS, 6000 LBS, 9000 LBS
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper-Nickel

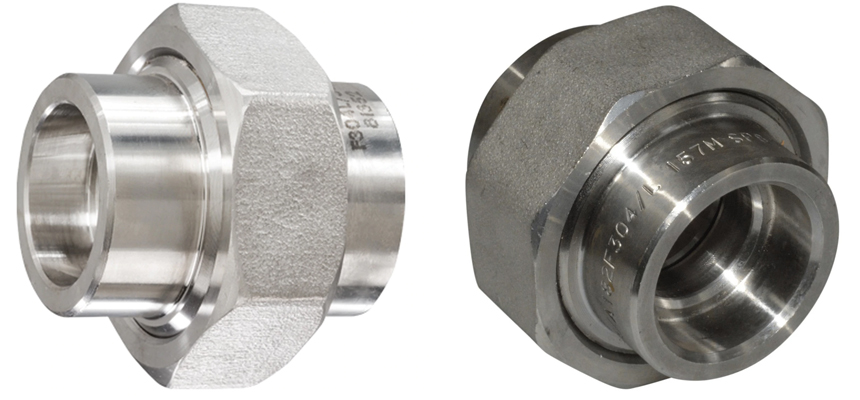

FORGED UNION
We Recognize as a Trusted Suppliers, & Exporters of Forged Union – ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 in all Dimensions and sizes.
Materials used in manufacturing of different types includes Stainless Steel, Duplex & Super Duplex Steel, Nickel Alloy, Copper Alloy, Carbon Steel, Alloy Steel, Hastelloy, Monel, Inconel, Titaniun, Incoloy, Alloy 20, 254 SMO, Mild Steel(MS), Brass.
Carbon Steel: ASTMA 105/A694/ A350 LF3/A350 LF2 – F42, F46, F52, F56, F60, F65, F70
Stainless Steel: ASTM / ASME A/SA 182 – F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L
321, 321H, 347, 347H, 904L
Duplex & Super Duplex: ASTM / ASME A/SA 182 – F44, F45, F51, F53, F55, F60, F61
Nickel Alloy: ASTM / ASME SB 564 / 160 / 472 – UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825)
UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), ALLOY 20
Copper Alloy: ASTM / ASME SB 61 / 62 / 151 / 152 – UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10)
C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
Alloy Steel: ASTM A182 – F1, F5, F9, F11, F22, F91
Brass Grades: Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA
ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
Chemicals Fertilizers Industries
Heat Exchanger
Instrumentation
Nuclear Thermal Industries
Oil Gas Industries
Pharmacy Surgical Industries
Refineries Petrochemicals
Water Gas Piping Systems
| Nominal Diameter | Outside Diameter | Wall Thickness | Socket Bore | Water way Bore | Depth of Socket | Length Assem Nominal |
|||
|---|---|---|---|---|---|---|---|---|---|
| Dmin | Cmin | d1 | d2 | Jmin | L | ||||
| DN | NPS | Socket | Threaded | Socket | Threaded | Socket | Socket & Threaded | Socket | Socket & Threaded |
| 6 | 1/8 | 21.8 | 14.7 | 3.2 | 2.5 | 10.65 | 6.43 | 10 | 41.4 |
| 8 | 1/4 | 21.8 | 19.0 | 3.3 | 3.1 | 14.10 | 9.45 | 10 | 41.4 |
| 10 | 3/8 | 25.9 | 22.9 | 3.5 | 3.2 | 17.55 | 13.51 | 10 | 46.0 |
| 15 | 1/2 | 31.2 | 27.7 | 4.1 | 3.8 | 21.70 | 17.07 | 10 | 49.0 |
| 20 | 3/4 | 37.1 | 33.5 | 4.3 | 4.0 | 27.05 | 21.39 | 13 | 56.9 |
| 25 | 1 | 45.5 | 41.4 | 5.0 | 4.6 | 33.80 | 27.74 | 13 | 62.0 |
| 32 | 11/4 | 54.9 | 50.5 | 5.3 | 4.9 | 42.55 | 35.36 | 13 | 71.1 |
| 40 | 11/2 | 61.5 | 57.2 | 5.6 | 5.1 | 48.65 | 41.20 | 13 | 76.5 |
| 50 | 2 | 75.2 | 70.1 | 6.1 | 5.6 | 61.10 | 52.12 | 16 | 86.1 |
| 65 | 21/2 | 91.7 | 85.3 | 7.7 | 7.1 | 73.80 | 64.31 | 16 | 102.4 |
| 80 | 3 | 109.2 | 102.4 | 8.4 | 7.7 | 89.80 | 77.27 | 16 | 109.0 |
