Dimensions: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size: 1/2″NB TO 4″NB IN
Pressure Class: 2000 LBS,3000 LBS, 6000 LBS, 9000 LBS
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form: 90 Deg Socket Weld Elbow, Long Radius Socket Weld 90 Deg Elbow, Short Radius 90 Deg Socket Weld elbow
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper-Nickel
ELBOW 90 DEGREE
We Recognize as a Trusted Suppliers, & Exporters of Forged Elbow 90 Degree – ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 in all Dimensions and sizes.
Materials used in manufacturing of different types like Forged 90° Long Radius Elbow, 90° Short Radius Elbow, 90° Reducing Elbow includes Stainless Steel, Duplex & Super Duplex Steel, Nickel Alloy, Copper Alloy, Carbon Steel, Alloy Steel, Hastelloy, Monel, Inconel, Titaniun, Incoloy, Alloy 20, 254 SMO, Mild Steel(MS), Brass.
Carbon Steel: ASTMA 105/A694/ A350 LF3/A350 LF2 – F42, F46, F52, F56, F60, F65, F70
Stainless Steel: ASTM / ASME A/SA 182 – F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L
321, 321H, 347, 347H, 904L
Duplex & Super Duplex: ASTM / ASME A/SA 182 – F44, F45, F51, F53, F55, F60, F61
Nickel Alloy: ASTM / ASME SB 564 / 160 / 472 – UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825)
UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), ALLOY 20
Copper Alloy: ASTM / ASME SB 61 / 62 / 151 / 152 – UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10)
C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
Alloy Steel: ASTM A182 – F1, F5, F9, F11, F22, F91
Brass Grades: Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA
ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
Chemicals Fertilizers Industries
Heat Exchanger
Instrumentation
Nuclear Thermal Industries
Oil Gas Industries
Pharmacy Surgical Industries
Refineries Petrochemicals
Water Gas Piping Systems

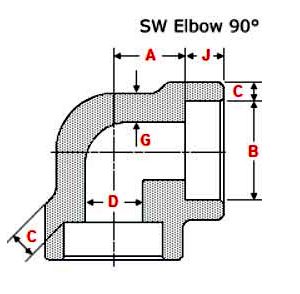

:NPS 1/2 to 4 – 90° Class 3000
| Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
NPS |
| B | J | D | C | G | |
| 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 | 1/2 |
| 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 | 3/4 |
| 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 | 1 |
| 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 | 1.1/4 |
| 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 | 1.1/2 |
| 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 | 2 |
| 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 | 2.1/2 |
| 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 | 3 |
| 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 | 4 |
:Class 6000 NPS 1/2 to 2
| Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
NPS |
| B | J | D | C | G | |
| 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 | 1/2 |
| 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 | 3/4 |
| 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 | 1 |
| 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 | 1.1/4 |
| 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 | 1.1/2 |
| 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 | 2 |
General notes:
Dimensions are in millimeters unless otherwise indicated*
Socket Bore (B) – Maximum and minimum dimensions*
Bore Diameter (D) – Maximum and minimum dimensions*
Socket wall thickness – (C) – Average of Socket wall thickness*
Dimensional tolerances center to bottom of socket – (A)*
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2.1/2 to NPS 4 = +/- 2.5 mm
