supplying and distributing of Valves, Pipes, Fittings, Hydraulic Clamps, Hydro-line products and oil, Gas, Petrochemical field supplies
| Product: | Seamless Pipe,Seamless Carbon Steel Pipe,Carbon Steel Seamless Pipe |
| Application: | For converying gas, water & oil for Fluids Transmission |
| Size: | OD: 13.72-914.4mm |
| WT: 1.25-50mm | |
| LENGTH: 5.8/6/11.8/12m | |
| Pipe Standard: | API 5L |
| ASTM A106 | |
| JIS G3454,G3455,G3456 | |
| DIN1629/EN10216-1 | |
| EN 10208 |
Seamless Pipe,Seamless Carbon Steel Pipe,Carbon Steel Seamless Pipe, Seamless Steel Pipe, Seamless Steel pipe & tube, black seamless steel pipe, SMLS Steel Pipe & Tube
Seamless steel pipe, as the name suggests, is a pipe without a seam or a weld-joint. Seamless steel pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow — liquids and gases (fluids), slurries, powders and masses of small solids.
The production of our seamless pipes is tightly regulated and all of the pipes we stock have been fully tested to international standards to ensure we only supply the highest quality products.
Product Details:
Pipe Standard: API 5L Steel pipe for pipeline transportation system
ASTM A106 Seamless Carbon Steel for High Temperature Service
JIS G3454,G3455,G3456 Carbon steel pipes
DIN1629/EN10216-1 Seamless Tubes of Non Alloys Steels
EN 10208 SEAMLESS STEEL PIPES FOR PIPELINE FOR FLUIDS

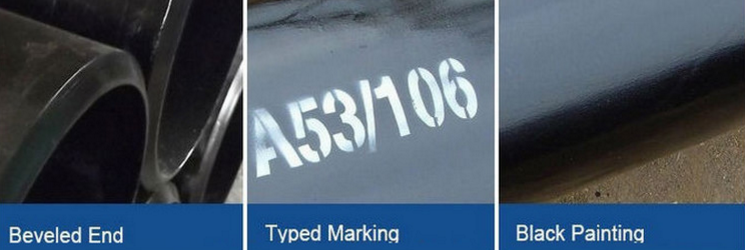

Pipe End: square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,
Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)

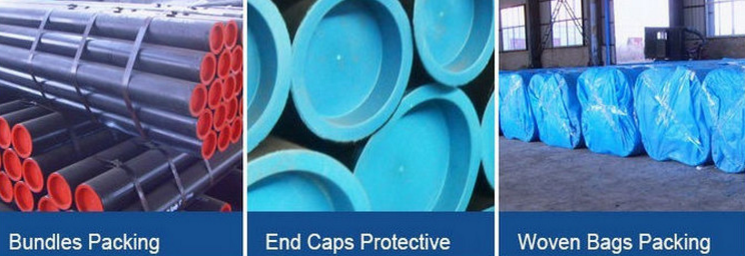

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, NDT TEST ( ET TEST, UT TEST)
| Standard | Grade | Chemical Components (%) | Mechanical Properties | |||||
| C | Si | Mn | P | S | Tensile STrength(Mpa) | Yield STrength(Mpa) | ||
| ASTM A53 | A | ≤0.25 | – | ≤0.95 | ≤0.05 | ≤0.06 | ≥330 | ≥205 |
| B | ≤0.30 | – | ≤1.2 | ≤0.05 | ≤0.06 | ≥415 | ≥240 | |
| ASTM A106 | A | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥415 | ≥240 |
| B | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥485 | ≥275 | |
| ASTM A179 | A179 | 0.06-0.18 | – | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 |
| ASTM A192 | A192 | 0.06-0.18 | ≤0.25 | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 |
| API 5L PSL1 | A | 0.22 | – | 0.9 | 0.03 | 0.03 | ≥331 | ≥207 |
| B | 0.28 | – | 1.2 | 0.03 | 0.03 | ≥414 | ≥241 | |
| X42 | 0.28 | – | 1.3 | 0.03 | 0.03 | ≥414 | ≥290 | |
| X46 | 0.28 | – | 1.4 | 0.03 | 0.03 | ≥434 | ≥317 | |
| X52 | 0.28 | – | 1.4 | 0.03 | 0.03 | ≥455 | ≥359 | |
| X56 | 0.28 | – | 1.4 | 0.03 | 0.03 | ≥490 | ≥386 | |
| X60 | 0.28 | – | 1.4 | 0.03 | 0.03 | ≥517 | ≥448 | |
| X65 | 0.28 | – | 1.4 | 0.03 | 0.03 | ≥531 | ≥448 | |
| X70 | 0.28 | – | 1.4 | 0.03 | 0.03 | ≥565 | ≥483 | |
| API 5L PSL2 | B | 0.24 | – | 1.2 | 0.025 | 0.015 | ≥414 | ≥241 |
| X42 | 0.24 | – | 1.3 | 0.025 | 0.015 | ≥414 | ≥290 | |
| X46 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥434 | ≥317 | |
| X52 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥455 | ≥359 | |
| X56 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥490 | ≥386 | |
| X60 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥517 | ≥414 | |
| X65 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥531 | ≥448 | |
| X70 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥565 | ≥483 | |
| X80 | 0.24 | – | 1.4 | 0.025 | 0.015 | ≥621 | ≥552 | |
